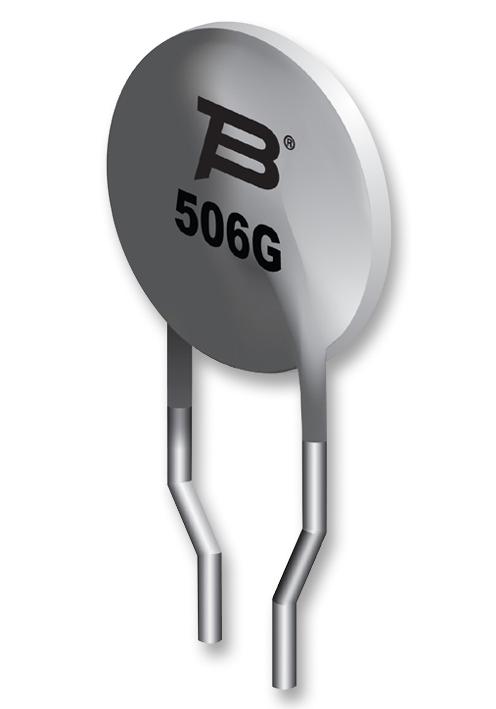

CMF-RL50-0 CPTC, Radial, Telecom, 50 OHM Bourns

BOURNSUGS :CMF-RL50-0 Code de commande:1652208

Prix:
Prix ​​promotionnel€0,89

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1846 unité)

Documents et téléchargements

description

PHOENIX CONTACT - 1652208 - D-SUB CONNECTOR SET, VS-25-SET-EMV

  • Thermistor Mounting: Through Hole
  • Product Range: CMF-RL Series
  • Holding Current: 65mA
  • Tripping Current: 150mA
  • Voltage Rating: 220VAC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Automotive Qualification Standard: -
  • SVHC: Lead (15-Jan-2019)
  • Approval Category: UL Recognised
  • Body Diameter: 9.8mm
  • Current Max: 3A
  • External Depth: 5mm
  • External Length / Height: 13.5mm
  • External Width: 9.8mm
  • Holding Current Max Ih: 0.065A
  • Lead Length: 3mm
  • Lead Spacing: 5.08mm
  • Operating Voltage: 650V
  • PTC Fuse Case Style: Radial Leaded
  • Resistance: 50ohm
  • Termination Type: Radial Leaded
  • Thermistor Type: PTC Resettable Fuse
  • Trip Time: 0.15s
