description

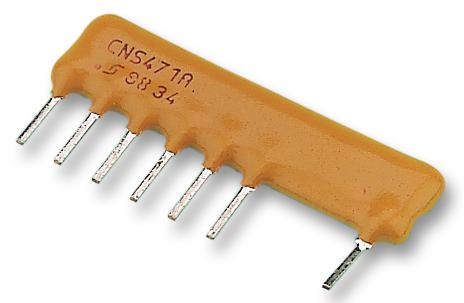

VISHAY - CNS471A5 - Resistor Network, 1 kohm, CNS 471, 9 Mohm, 5 Elements, Voltage Divider, SIP
- Resistance: 9Mohm
- Product Range: CNS 020 Series
- Power Rating: 100mW
- Resistance Tolerance: ± 0.1%
- Resistor Case Style: SIP
- Voltage Rating: 1.2kV
- Resistor Element Material: Thin Film
- Temperature Coefficient: ± 25ppm/°C
- Automotive Qualification Standard: -
- No. of Elements: 5Elements
- No. of Pins: 6Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Power Rating per Element: 100mW
- Ratio Tolerance +: 0.03
- Ratio Tolerance -: 0.03
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 25ppm/°C
- Temperature Coeff. -: 25ppm/°C
- Temperature Coefficient Ratio +: 2.5ppm
- Temperature Coefficient Ratio -: 2.5ppm
- Tolerance +: 0.1%
- Tolerance -: 0.1%
- Voltage Coefficient +: 0.002ppm/V
- Voltage Coefficient -: -0.002ppm/V
- Voltage Rating V DC: 1200V
