description

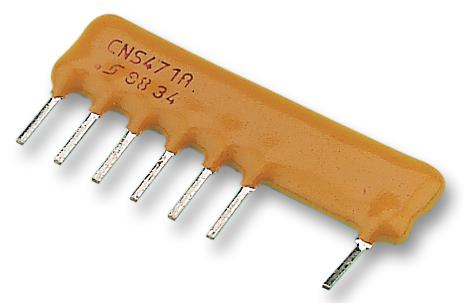

VISHAY - CNS471A6 - Decade Divider, 100 ohm to 9M ohm, CNS 471 Series, 6 Elements, SIP
- Resistance: 9Mohm
- Product Range: CNS47 Series
- No. of Elements: 6Elements
- Network Circuit Type: Voltage Divider
- Resistor Case Style: SIP
- No. of Pins: 7Pins
- Voltage Rating: 1.2kV
- Power Rating per Element: 100mW
- Resistance Tolerance: ± 0.1%
- Temperature Coefficient: ± 25ppm/°C
- Automotive Qualification Standard: AEC-Q200
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Ratio Tolerance +: 0.03
- Ratio Tolerance -: 0.03
- Resistance R1: 9Mohm
- Resistor Element Material: Thin Film
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 25ppm/°C
- Temperature Coeff. -: 25ppm/°C
- Temperature Coefficient Ratio +: 2.5ppm
- Temperature Coefficient Ratio -: 2.5ppm
- Tolerance +: 0.1%
- Tolerance -: 0.1%
- Voltage Coefficient +: 0.002ppm/V
- Voltage Coefficient -: -0.002ppm/V
- Voltage Rating V DC: 1200V
