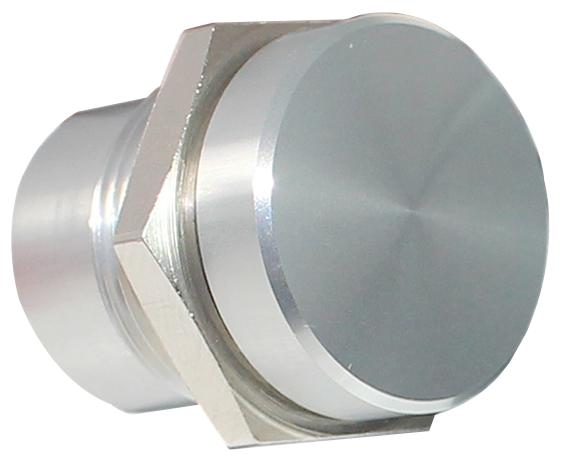

description
- Contact Configuration: SPST-NO
- Actuator / Cap Colour: Natural
- Product Range: -
- Switch Operation: Momentary
- Illumination Colour: Non-illuminated
- Switch Terminals: Wire Leaded
- Contact Current Max: 200mA
- Contact Voltage AC Max: 24V
- Operating Force: 5N
- Contact Voltage DC Max: 24V
- SVHC: No SVHC (15-Jan-2019)
- Contact Current AC Max: 200mA
- Contact Current DC Max: 200mA
- Contact Voltage VAC: 24V
- Contact Voltage VDC: 24V
- IP Rating: IP68
- Lead Length: 300mm
- Material: Aluminium
- Operating Force Max: 5N
- Operating Force Min: 3N
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Panel Cutout Diameter: 16mm
- Pushbutton Actuator Style: Round
- Pushbutton Switch Type: Anti-Vandal - Piezo
- Switch Mounting: Panel
