description

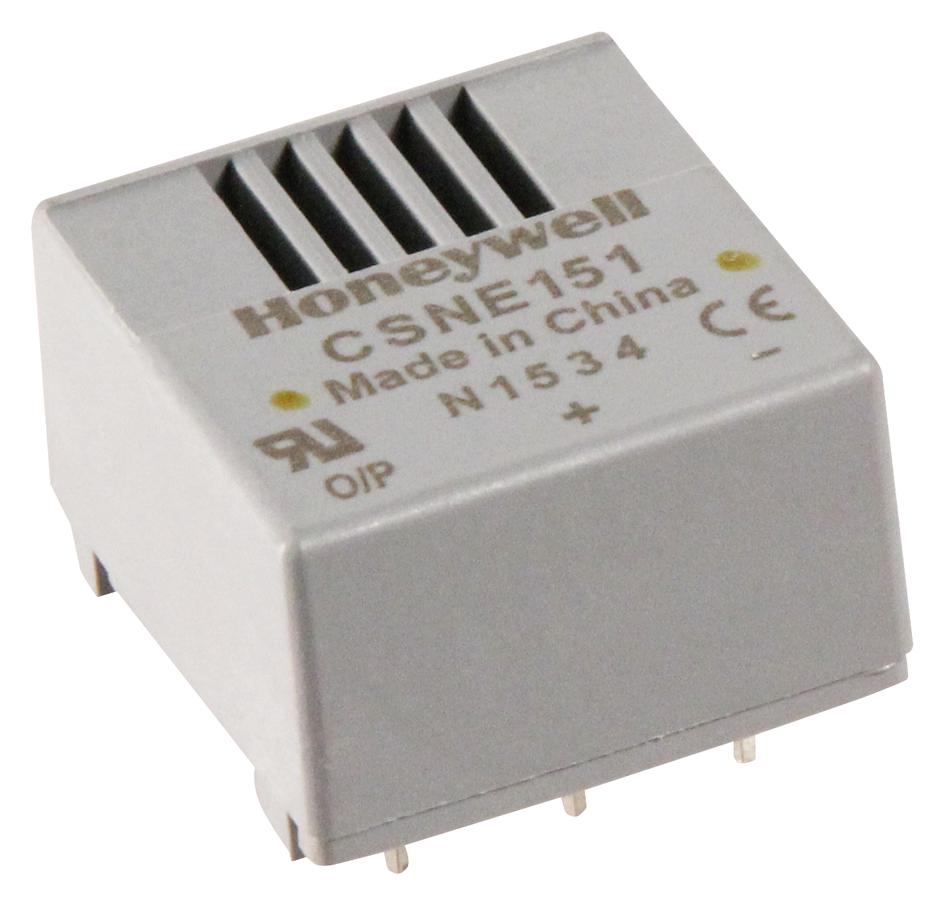

HONEYWELL - CSNE151 - Current Sensor, CSN Series, Solid State, -36A to 36A, Closed Loop Output, 14.25 Vdc to 15.75 Vdc
- Sensor Output: Closed Loop
- Supply Voltage DC Min: 14.25V
- Supply Voltage DC Max: 15.75V
- Current Measuring Range DC: -36A to 36A
- Current Measuring Range AC: -36A to 36A
- Response Time: 1µs
- Accuracy %: 0.5%
- Product Range: CSN Series
- SVHC: No SVHC (07-Jul-2017)
- Accuracy: 0.5%
- Coil Resistance: 110ohm
- Current Consumption: 10mA
- Current Range AC: 0 to 36A
- Current Range DC: 0 to 36A
- Current Rating: 36A
- External Depth: 27.5mm
- External Length / Height: 16.8mm
- External Width: 26mm
- Flammability Rating: UL94V-0
- Linearity: 0.2%
- Material: Glass Filled PBT (UL94-V0)
- Operating Frequency Range: 0Hz to 150kHz
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Output Current: 25mA
- Output Type: Closed Loop
- Percentage Accuracy +: 0.5%
- Percentage Accuracy -: 0.5%
- Supply Current: 10mA
- Supply Voltage: 15VDC
- Supply Voltage Range DC: ± 14.25V to ± 15.75V
- Total Current Rating: 36A
- Transducer Function: Current
