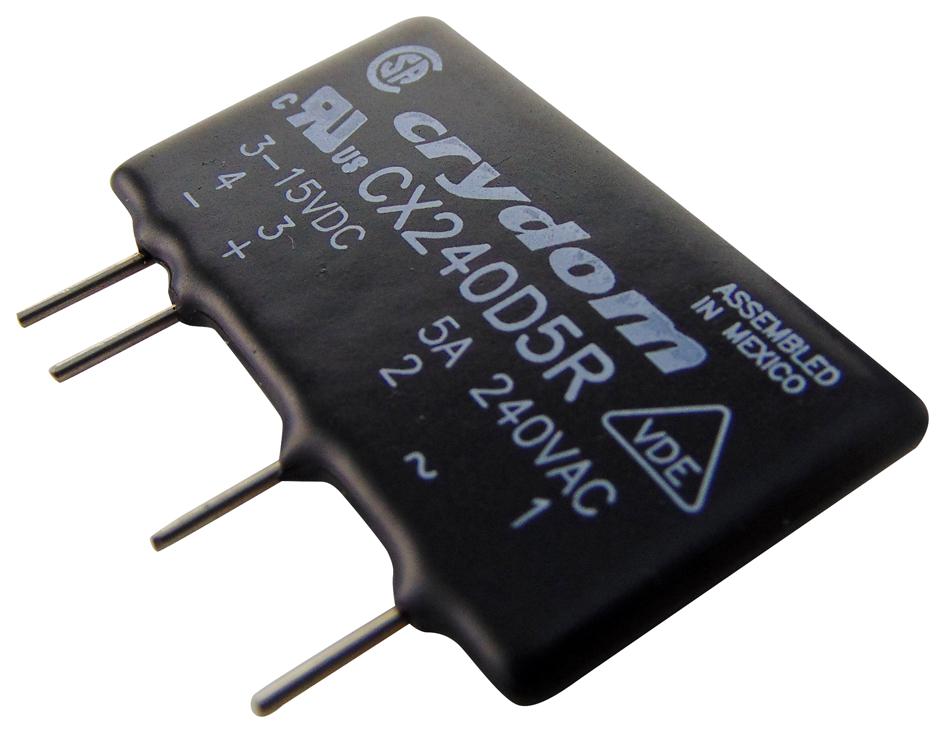

SENSATA/CRYDOM - CX240D5R - Solid State Relay, CX Series, SIP, SPST-NO, 5 A, 280 Vrms, PCB, Through Hole, Random Turn On
- Contact Configuration: SPST-NO
- Load Current: 5A
- Operating Voltage Max: 280Vrms
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: Random Turn On
- Operating Voltage Min: 12Vrms
- Control Voltage Min: 3VDC
- Control Voltage Max: 15VDC
- Product Range: CX Series
- SVHC: No SVHC (07-Jul-2017)
- Approval Bodies: CSA, VDE
- Approval Category: UL Recognised
- Blocking voltage: 600V
- Control Current Typ: 15mA
- Control Voltage DC Max: 15VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Range: 3V DC to 15V DC
- Control Voltage Type: DC
- Current Load AC Max: 5A
- External Depth: 7.6mm
- External Length / Height: 25.4mm
- External Width: 43.1mm
- I2t: 260s
- Input Impedance: 240ohm
- Input Voltage: 3V DC to 15V DC
- Leakage Current: 0.1mA
- Load Current Min: 0.06A
- Load Current RMS Max: 5A
- Load Voltage DC Max: 280V
- Load Voltage DC Min: 12VDC
- Load Voltage Range: 12Vrms to 280Vrms
- No. of Pins: 4Pins
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Output Type: SCR
- Pin Length: 7.6mm
