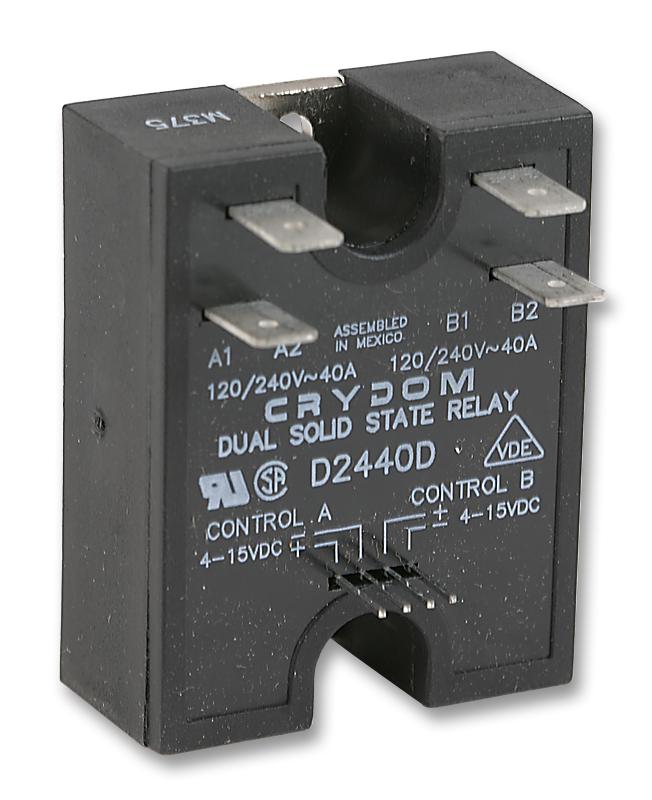

D2440D SSR, Dual, 40A, 240Vac SENSATA/Crydom

SENSATA/CRYDOMUGS :D2440D Code de commande:1200199

Prix:
Prix ​​promotionnel€126,16

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (72 unité)

Documents et téléchargements

description

SENSATA/CRYDOM - D2440D - Solid State Relay, DPST-NO, 40 A, 280 VAC, Panel Mount, Quick Connect, Zero Crossing

  • Contact Configuration: DPST-NO
  • Load Current: 40A
  • Operating Voltage Max: 280VAC
  • Relay Mounting: Panel
  • Relay Terminals: Quick Connect
  • Switching Mode: Zero Crossing
  • Operating Voltage Min: 24VAC
  • Control Voltage Min: 4VDC
  • Control Voltage Max: 15VDC
  • Product Range: 1 Series
  • SVHC: No SVHC (12-Jan-2017)
  • Blocking voltage: 600V
  • Control Voltage DC Max: 15VDC
  • Control Voltage DC Min: 4VDC
  • Control Voltage Range: 4V DC to 15V DC
  • Control Voltage Type: DC
  • External Depth: 57.15mm
  • External Diameter: 4.5mm
  • External Length / Height: 21mm
  • External Width: 44.5mm
  • Fixing Centres: 47.5mm
  • Isolation Voltage: 4kV
  • Load Current Min: 0.15A
  • Load Current RMS Max: 40A
  • Must Release Voltage: 1V
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -30°C
  • Operating Voltage Range: 24Vrms to 280Vrms
  • Output Type: Thyristor
  • RMS Load Voltage Max: 280V
  • RMS Load Voltage Min: 24V
  • Rate of Voltage Change dv / dt: 200V/µs
  • Resistance: 310ohm
  • Single Cycle Surge Current: 500A
  • Surge Current: 500A
