OMRON - D2F-L3 - Microswitch, Snap Action, Simulated Roller Lever, SPDT, Solder, 3 A, 30 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Simulated Roller Lever
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 3A
- Contact Voltage DC Nom: 30VDC
- Product Range: D2F Series
- Contact Voltage AC Nom: 125VAC
- Operating Force Max: 80gf
- Actuation Type: Simulated Roller Lever
- Actuator Type: Simulated Roller Lever
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current @ Contact Voltage DC Max: 2A
- Contact Current AC Max: 3A
- Contact Current DC Max: 2A
- Contact Resistance: 30mohm
- Contact Voltage AC Max: 125VAC
- Contact Voltage DC Max: 30VDC
- Dielectric Strength VDC: 600VAC
- Differential Travel Max: 0.5mm
- External Depth: 5.8mm
- External Length / Height: 6mm
- External Width: 12.8mm
- Fixing Centres: 6.5mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500VDC
- Lead Length: 3.5mm
- Lead Spacing: 5.08mm
- Lever Length: 10mm
- No. of Electrical Operations: 30000
- Operating Temperature Max: 65°C
Frais de port prévus
Tu pourrais aussi aimer

OMRON
D2FL Microswitch, Lever, SPDT, 3a, 125VAC Omron
Prix promotionnel€2,68
En stock, 3491 produits
OMRON
D3V-166-1C5 Microswitch, v3, Roller Lever Omron
Prix promotionnel€4,76
En stock, 732 produits
OMRON

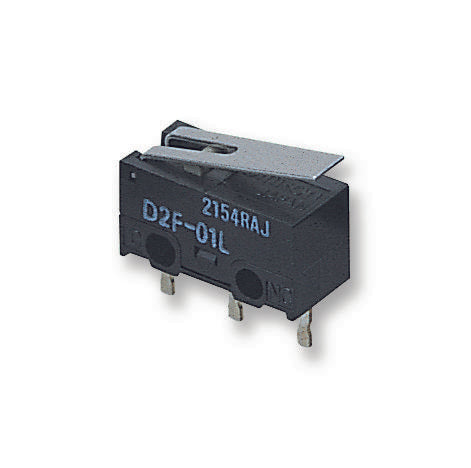

D2F-01L3-D3 Microswitch, 0.1A, Slim Roller Omron
Prix promotionnel€4,02
En stock, 36 produits
OMRON
Z-15GW2BOMI Microswitch, Z, Roller Lever Omron
Prix promotionnel€17,63
En stock, 159 produits
OMRON
D2VW-01L3-1 Microswitch, Sealed, 0.1A, Sim Roller Omron
Prix promotionnel€12,99
Il ne reste que 7 produits
OMRON

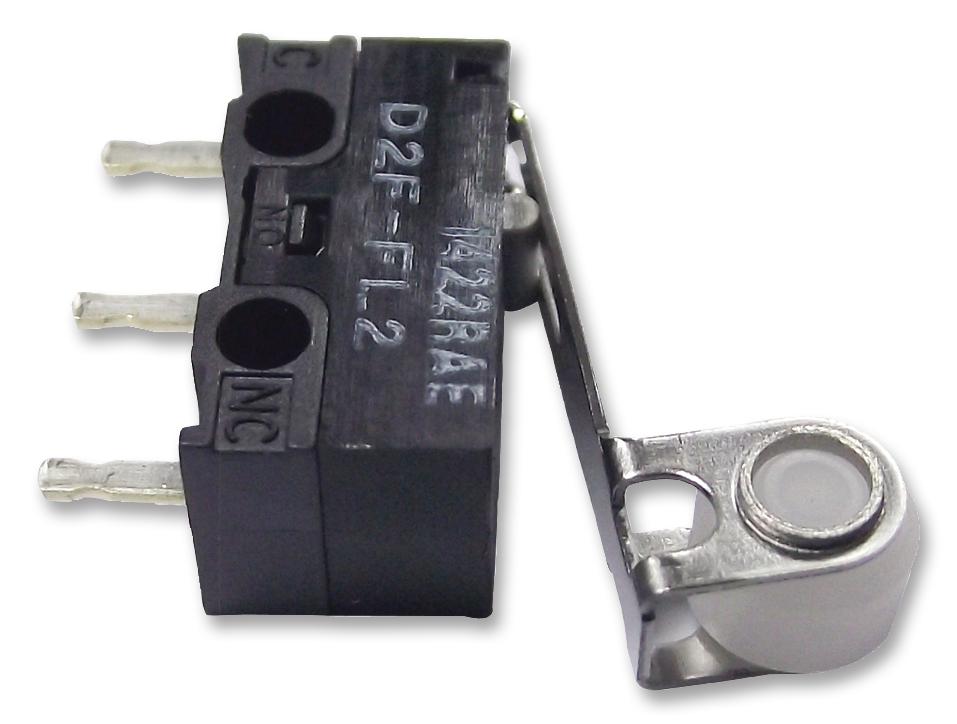

D2FFL2 Microswitch, Hinge Roller, 1A, Pcb Omron
