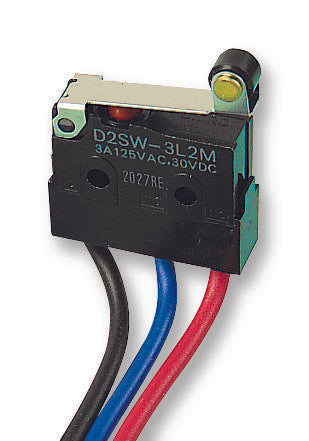

D2SW-3L2M Microswitch, v4, Roller Lever Omron

OMRONUGS :D2SW-3L2M Code de commande:959844

Prix:
Prix ​​promotionnel€17,20

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (117 unité)

Documents et téléchargements

description

OMRON - D2SW-3L2M - Microswitch, Snap Action, Roller Lever, SPDT, Wire Leaded, 3 A, 30 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Roller Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Wire Leaded
  • Contact Current Max: 3A
  • Contact Voltage DC Nom: 30VDC
  • Product Range: D2SW Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 0.59N
  • Actuation Type: Roller Lever
  • Actuator Type: Hinge Roller Lever
  • Approval Bodies: CSA, EN, UL, VDE
  • Contact Current AC: 2A
  • Contact Current AC Max: 3A
  • Contact Current DC Max: 3A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 30V
  • Differential Travel Max: 0.8mm
  • External Depth: 21.2mm
  • External Length / Height: 16.9mm
  • External Width: 6.4mm
  • Fixing Centres LxW: 9.5mm
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500V
  • Lever Length: 14.5mm
  • No. of Electrical Operations: 200000
  • Operating Force: 0.59N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Over Travel Min: 1mm
  • Pre-travel: 4.8mm
  • Release Force: 6gf
