D459-V3RD Microswitch, SPCO, Med Roller Lever ZF Electronics

ZF ELECTRONICSUGS :D459-V3RD Code de commande:1519065

Prix:
Prix ​​promotionnel€8,66

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (881 unité)

Documents et téléchargements

description

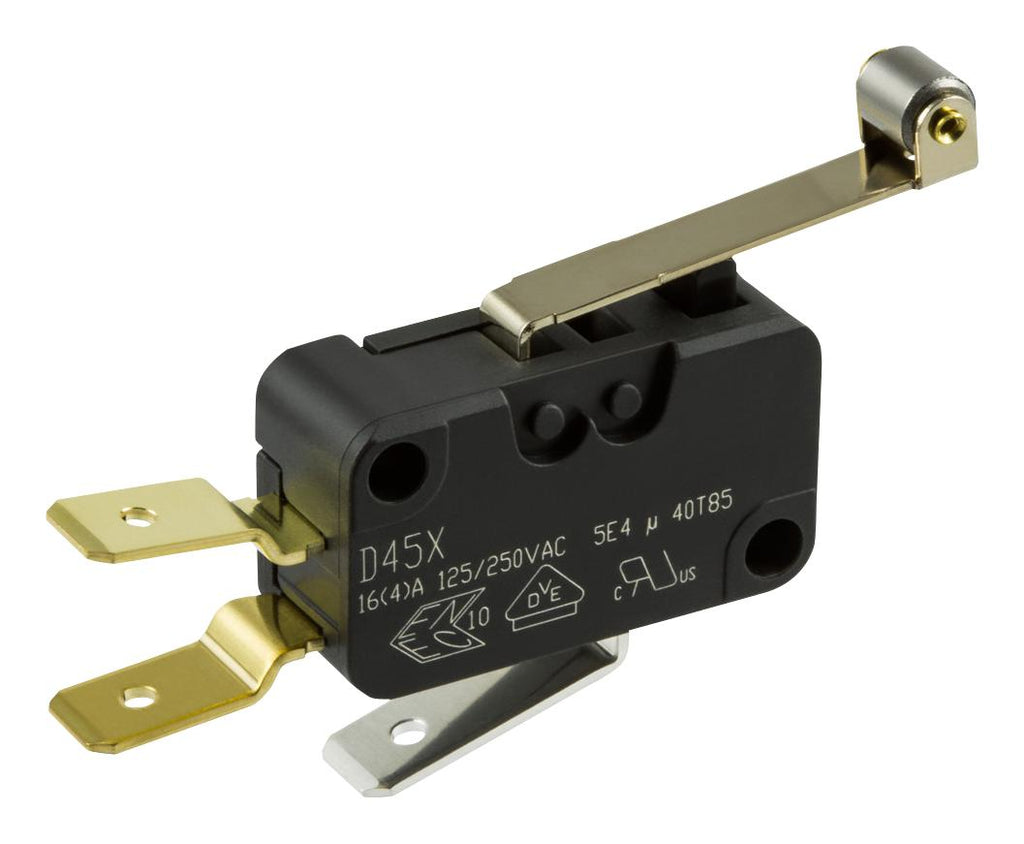

ZF ELECTRONICS - D459-V3RD - Microswitch, Snap Action, Roller Lever, SPDT, Quick Connect, 16 A

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Roller Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Quick Connect
  • Contact Current Max: 16A
  • Contact Voltage DC Nom: -
  • Product Range: D4 Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 50gf
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Roller Lever
  • Actuator Type: Medium Roller Lever
  • Approval Bodies: ENEC, VDE
  • Approval Category: UL Recognised
  • Contact Current AC: 16A
  • Contact Current AC Max: 16A
  • Contact Voltage AC Max: 250V
  • Differential Travel Max: 0.8mm
  • External Depth: 10.31mm
  • External Length / Height: 16.2mm
  • External Width: 27.8mm
  • Flammability Rating: UL 94V-O
  • Material: PET
  • Operating Force: 0.49N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Over Travel Min: 2.2mm
  • Pre-travel: 3.2mm
  • Switch Case: PET (Polyethylene Terephthalate)
