D50P24A6RX09LF Plug, 50 Way Straight Pin In Paste Amphenol ICC

AMPHENOL ICCUGS :D50P24A6RX09LF Code de commande:1540516

Prix:
Prix ​​promotionnel€11,86

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (58 unité)

Documents et téléchargements

description

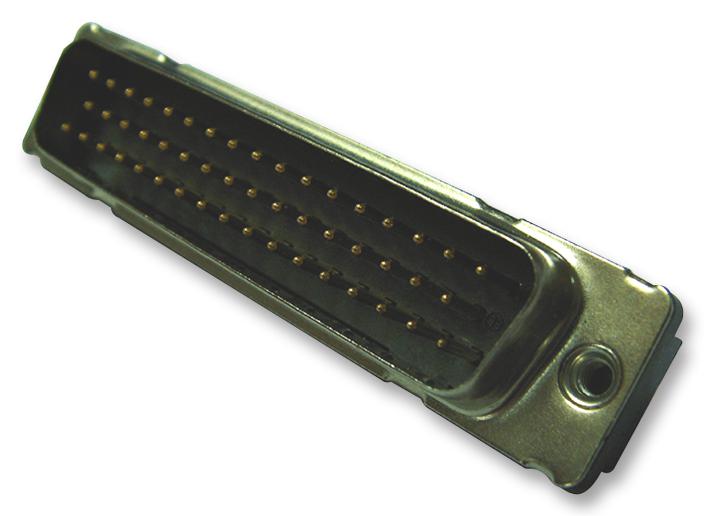

AMPHENOL COMMUNICATIONS SOLUTIONS - D50P24A6RX09LF - D Sub Connector, DB50, Standard, Plug, D, 50 Contacts, DD, Solder

  • No. of Contacts: 50Contacts
  • Gender: Plug
  • Contact Termination Type: Solder
  • D Sub Shell Size: DD
  • Product Range: D Series
  • Connector Body Material: Steel Body
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plated Contacts
  • SVHC: Lead (15-Jan-2019)
  • Connector Mounting: Through Hole Mount
  • Contact Resistance: 10mohm
  • Contact Termination: Solder
  • Current per Contact Max: 5A
  • D Sub Connector Type: Standard
  • Insulation Resistance: 5000Mohm
  • Material: Steel
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Termination Method: Through Hole
