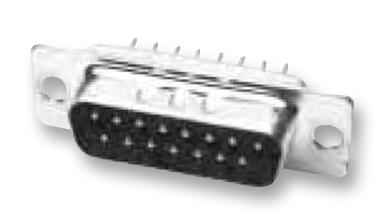

DA-15P-OL2-K87 Connector, Straight Pcb, Plug, 15 Way ITT Cannon

ITT CANNONUGS :DA-15P-OL2-K87 Code de commande:1760335

Prix:
Prix ​​promotionnel€15,36

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (188 unité)

Documenten en downloads

description

ITT CANNON - DA-15P-OL2-K87 - D Sub Connector, DB15, Standard, Plug, DA, 15 Contacts, DA, Solder

  • No. of Contacts: 15Contacts
  • Gender: Plug
  • Contact Termination Type: Solder
  • D Sub Shell Size: DA
  • Product Range: DA Series
  • Connector Body Material: Metal Body
  • Contact Material: -
  • Contact Plating: -
  • Body Plating: Tin
  • Connector Mounting: Through Hole Mount
  • Contact Resistance: 10mohm
  • Contact Termination: Solder
  • Current Rating: 5A
  • D Sub Connector Type: Standard
  • Flammability Rating: UL94V-0
  • Material: Steel
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Termination Method: Solder
  • Withstand Voltage: 1250V
