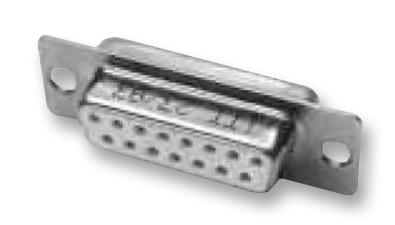

ITT CANNON - DA-15S-A197 - D Sub Connector, DB15, Standard, Receptacle, DA, 15 Contacts, DA, Solder Cup
- No. of Contacts: 15Contacts
- Gender: Receptacle
- Contact Termination Type: Solder Cup
- D Sub Shell Size: DA
- Product Range: DA Series
- Connector Body Material: Steel Body
- Contact Material: Copper Alloy
- Contact Plating: Gold Plated Contacts
- Body Plating: Tin
- Connector Mounting: Cable Mount
- Contact Resistance: 10mohm
- Contact Termination: Solder
- Current Rating: 5A
- D Sub Connector Type: Standard
- Flammability Rating: UL94V-0
- Material: Steel
- No. of Mating Cycles: 200
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Termination Method: Solder
- Withstand Voltage: 1250V
