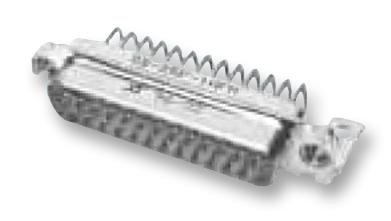

ITT CANNON - DC-37P-1A7N-K87 - D Sub Connector, Right Angle, DB9, Standard, Plug, DC, 37 Contacts, DC, Solder
- No. of Contacts: 37Contacts
- Gender: Plug
- Contact Termination Type: Solder
- D Sub Shell Size: DC
- Product Range: DC Series
- Connector Body Material: Metal Body
- Contact Material: -
- Contact Plating: -
- Body Plating: Tin
- Connector Mounting: Through Hole Mount Right Angle
- Contact Resistance: 10mohm
- Contact Termination: Solder
- Current Rating: 5A
- D Sub Connector Type: Standard
- Flammability Rating: UL94V-0
- Material: Steel
- No. of Mating Cycles: 200
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Termination Method: Solder
- Withstand Voltage: 1250V
