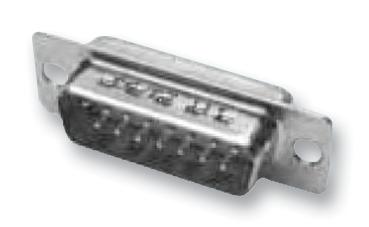

DC-37P-K87 Connector, Solder Cup, Plug, 37 Way ITT Cannon

ITT CANNONUGS :DC-37P-K87 Code de commande:1760327

Prix:
Prix ​​promotionnel€22,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (68 unité)

Documents et téléchargements

description

ITT CANNON - DC-37P-K87 - D Sub Connector, DB37, Standard, Plug, Original D, 37 Contacts, DC, Solder Cup

  • No. of Contacts: 37Contacts
  • Gender: Plug
  • Contact Termination Type: Solder Cup
  • D Sub Shell Size: DC
  • Product Range: Original D Series
  • Connector Body Material: Steel Body
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plated Contacts
  • SVHC: No SVHC (07-Jul-2017)
  • Body Plating: Tin
  • Connector Mounting: Cable Mount
  • Contact Resistance: 10mohm
  • Contact Termination: Solder
  • Current Rating: 5A
  • D Sub Connector Type: Standard
  • Flammability Rating: UL94V-0
  • Material: Steel
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Termination Method: Solder
  • Withstand Voltage: 1250V
