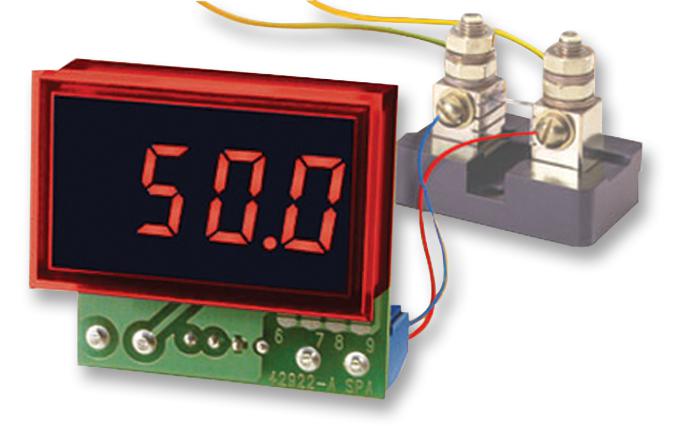

MURATA POWER SOLUTIONS - DCA5-20PC-1-DC4-RL-C - Ammeter, DCA5-20PC Series, DC Current, 3.5 Digits, 8 Vdc to 36 Vdc, Red
- No. of Digits / Alpha: 3-1/2
- Meter Function: DC Current
- Meter Range: 0A to 5A, 0A to 50A, 0A to 500A
- Digit Height: 9.4mm
- Panel Cutout Height: 21.29mm
- Panel Cutout Width: 33.93mm
- Supply Voltage Min: 8VDC
- Supply Voltage Max: 36VDC
- Operating Temperature Min: 0°C
- Operating Temperature Max: 60°C
- Product Range: DATEL®
- SVHC: No SVHC (07-Jul-2017)
- Accuracy %: 0.15%
- Bezel Height: 22.4mm
- Bezel Width: 35mm
- Character Height: 9.4mm
- Display Area Depth: 12.1mm
- Display Technology: LED
- External Depth: 25.4mm
- External Length / Height: 20.3mm
- External Width: 33mm
- Full Scale Reading: 5A/50A/500A with 50mV Shunt - 10A/100A/1000A with 100mV Shunt
- Humidity: 85%
- Input Current: 25mA
- Input Impedance: 1kohm
- LED Colour: Red
- Operating Temperature Range: 0°C to +60°C
- Power Consumption: 1W
- Supply Current: 150mA
- Supply Voltage DC Max: 36VDC
- Supply Voltage DC Min: 8VDC
- Supply Voltage Range: 8V DC to 36V DC
