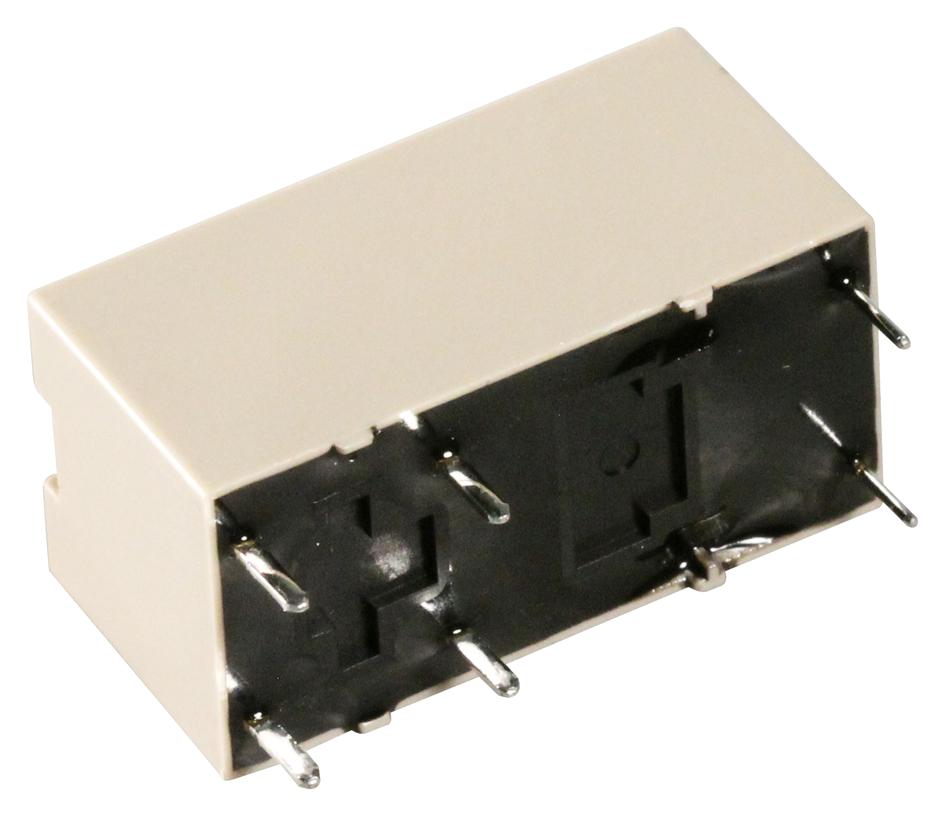

PANASONIC - DE1A1B-24V - General Purpose Relay, DE(ADE) Series, Power, Non Latching, DPST-NO, DPST-NC, 24 VDC, 8 A
- Contact Configuration: DPST-NO, DPST-NC
- Coil Voltage: 24VDC
- Contact Current: 8A
- Product Range: DE Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Tin Oxide
- Coil Resistance: 2.88kohm
- SVHC: No SVHC (07-Jul-2017)
- Coil Current: 8.3mA
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 8A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- External Depth: 25mm
- External Height: 12mm
- External Width: 12.5mm
- Nom Operating Power: 200mW
- Relay Type: Power
