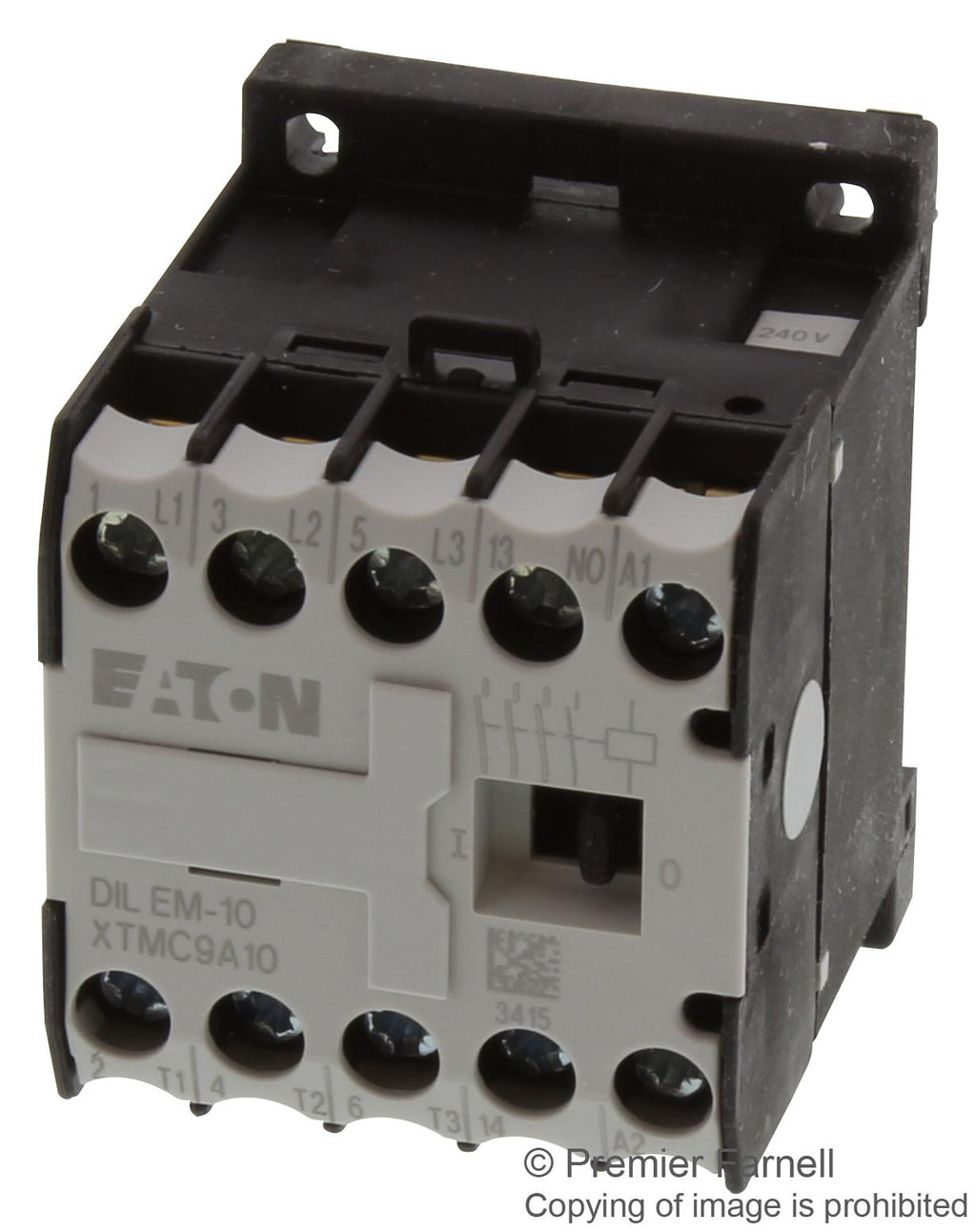

DILEM-10 240Vac Contactor, 3PST, 4kW, 240Vac Eaton Moeller

EATON MOELLERUGS :DILEM-10 240VAC Code de commande:239483

Prix:
Prix ​​promotionnel€63,76

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (42 unité)

Documents et téléchargements

description

EATON MOELLER - DILEM-10 240VAC - Contactor, 9 A, Panel Mount, 690 VAC, 3PST, 3 Pole, 4 kW

  • Load Current Inductive: 9A
  • Relay Mounting: Panel
  • Operating Voltage: 690VAC
  • Contact Configuration: 3PST
  • No. of Poles: 3 Pole
  • Switching Power AC3: 4kW
  • Switching Current AC1: 22A
  • Coil Voltage VAC Nom: 240V
  • Coil Voltage VDC Nom: -
  • Switching Power AC1: 1.5kW
  • Load Current Resistive: 22A
  • Switching Current AC3: 9A
  • Product Range: DILEM
  • SVHC: No SVHC (17-Dec-2015)
  • Contactor Direction: Non-Reversing
  • External Depth: 52mm
  • External Length / Height: 58mm
  • External Width: 45mm
  • Height: 58mm
  • IP Rating: IP20
  • Operating Temperature Max: 50°C
  • Operating Temperature Min: -25°C
  • Relay Type: Contactor
