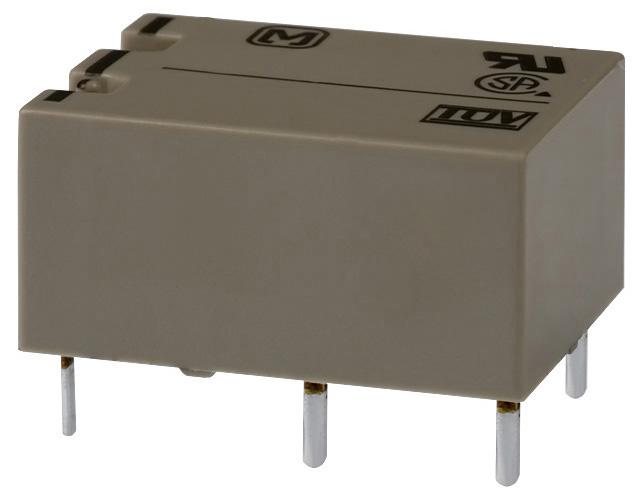

DK1A-12V-F Relay, SPST-NO, 250VAC, 30Vdc, 10A Panasonic

PANASONICUGS :DK1A-12V-F Code de commande:1703718

Prix:
Prix ​​promotionnel€13,21

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (48 unité)

Documents et téléchargements

description

PANASONIC - DK1A-12V-F - General Purpose Relay, DK Series, Power, Non Latching, SPST-NO, 12 VDC, 10 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 12VDC
  • Contact Current: 10A
  • Product Range: DK Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 720ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Coil Current: 16.6mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 16.6mA
  • Contact Current Max: 10A
  • Contact Voltage AC Max: 250VAC
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30VDC
  • Contact Voltage DC Nom: 30V
  • External Depth: 12.5mm
  • External Height: 9.7mm
  • External Length / Height: 9.7mm
  • External Width: 20mm
  • Nom Operating Power: 200mW
  • Relay Type: Power - General Purpose
