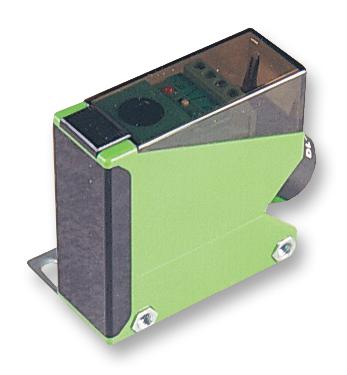

TAKEX - DL-S200P - Photoelectric Sensor, DL Series, Industrial, Diffuse, 2 m, Relay, 24 V to 240 V
- Sensing Range Max: 2m
- Sensing Method: Diffuse
- Sensor Output: Relay
- Product Range: DL Series
- Connection Method: Terminal Block
- Supply Voltage DC Min: 24V
- Supply Voltage DC Max: 240V
- SVHC: No SVHC (15-Jan-2019)
- Current Consumption: 30mA
- External Depth: 80mm
- External Length / Height: 68mm
- External Width: 26mm
- IP / NEMA Rating: IP66
- Operating Temperature Max: 55°C
- Operating Temperature Min: -25°C
- Output Current Max: 3A
- Response Time: 20ms
- Sensing Distance Max: 2m
- Sensing Distance Min: 0.2m
- Sensing Range: 200mm to 2m
- Sensor Input: Optical
- Supply Voltage AC Max: 240V
- Supply Voltage AC Min: 24V
- Supply Voltage Range DC: 24V to 240V
