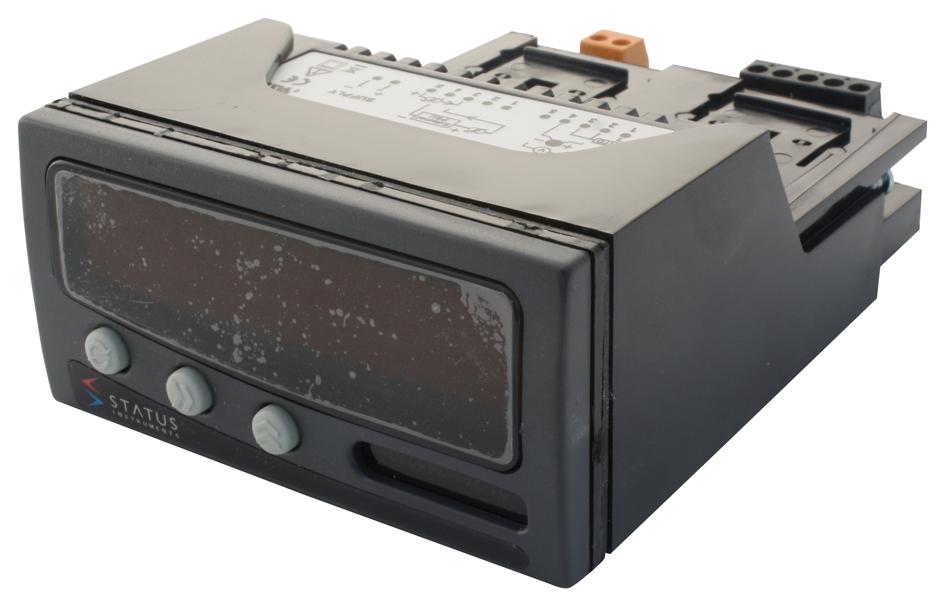

STATUS - DM3600U/S1 - Digital Panel Meter, DM3600, Intelligent, TFML, 6 Digits, DC Current / DC Voltage / Temperature,
- No. of Digits / Alpha: 6
- Meter Function: DC Current / DC Voltage / Temperature
- Meter Range: -10mA to +20mA, -100mV to +10V, -200°C to +850°C
- Digit Height: -
- Panel Cutout Height: 45mm
- Panel Cutout Width: 92mm
- Supply Voltage Min: 90VAC
- Supply Voltage Max: 264VAC
- Operating Temperature Min: -30°C
- Operating Temperature Max: 60°C
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Digital Instrument Type: Multifunction
- Display Font Colour: Red
- Display Technology: LED
- Operating Temperature Range: -30°C to +60°C
- Panel Cutout Size: 92 x 45 mm
- Power Consumption: 6VA
- Supply Voltage Range: 90V AC to 264V AC
