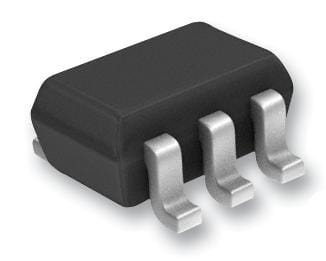

DIODES INC. - DMP2104V-7 - Power MOSFET, P Channel, 20 V, 950 mA, 0.15 ohm, SOT-563, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: -950mA
- Drain Source Voltage Vds: -20V
- On Resistance Rds(on): 0.15ohm
- Rds(on) Test Voltage Vgs: -4.5V
- Threshold Voltage Vgs: -1V
- Power Dissipation Pd: 170mW
- Transistor Case Style: SOT-563
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Current Id Max: -860mA
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Transistor Type: Enhancement
- Voltage Vds Typ: -20V
- Voltage Vgs Max: 12V
- Voltage Vgs Rds on Measurement: -4.5V
