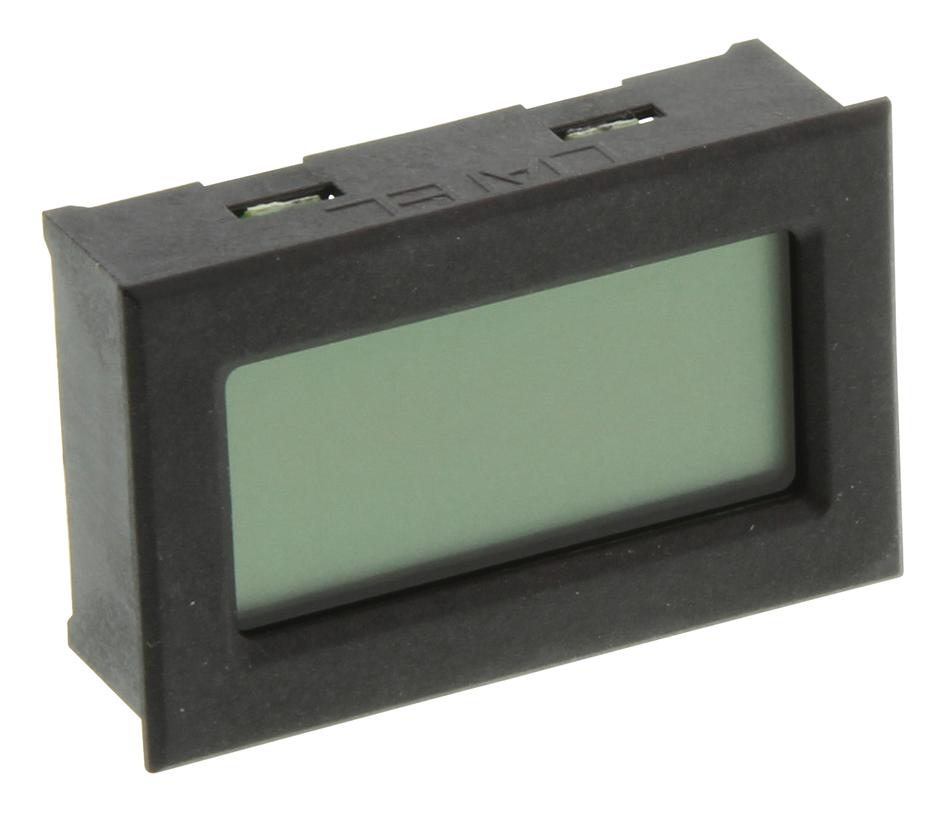

MURATA POWER SOLUTIONS - DMS-20LCD-1-DCM-C - Voltmeter, DMS-20LCD Series, DC Voltage, 8V to 50V, 3 Digits, 8 Vdc to 50 Vdc
- No. of Digits / Alpha: 3
- Meter Function: DC Voltage
- Meter Range: 8V to 50V
- Digit Height: 9.4mm
- Panel Cutout Height: 21.29mm
- Panel Cutout Width: 33.93mm
- Supply Voltage Min: 8VDC
- Supply Voltage Max: 50VDC
- Operating Temperature Min: 0°C
- Operating Temperature Max: 60°C
- Product Range: DMS-20LCD-0/1 Series
- SVHC: No SVHC (07-Jul-2017)
- Accuracy: ± 0.1V
- Bezel Height: 22mm
- Bezel Width: 35mm
- Display Area Width: 35mm
- Display Size: 35.1mm x 22.4mm
- Display Technology: LCD
- External Depth: 17mm
- External Length / Height: 20mm
- External Width: 33mm
- Leakage Current: 1mA
- Operating Temperature Range: 0°C to +60°C
- Resolution: 1V
- Supply Voltage DC Max: 50V
- Supply Voltage DC Min: 8V
- Supply Voltage Range: 8V DC to 50V DC
