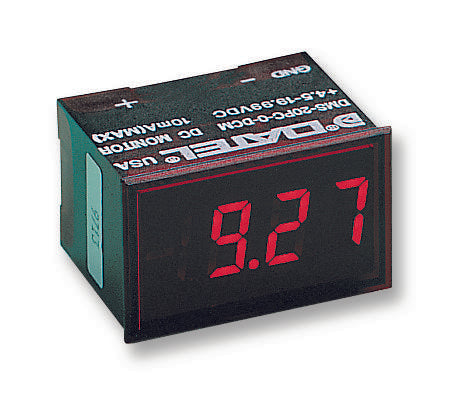

DMS-20Pc-0-DCM-C Voltmeter, DC, LED Murata Power Solutions

MURATA POWER SOLUTIONSUGS :DMS-20PC-0-DCM-C Code de commande:1215407

Prix:
Prix ​​promotionnel€73,45

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (10 unité)

Documents et téléchargements

description

MURATA POWER SOLUTIONS - DMS-20PC-0-DCM-C - Voltmeter, DMS-20PC-DCM Series, DC Voltage, 4.5V to 19.99V, 3.5 Digits, 4.5 V to 19.99 V, Red

  • No. of Digits / Alpha: 3-1/2
  • Meter Function: DC Voltage
  • Meter Range: 4.5V to 19.99V
  • Digit Height: 9.4mm
  • Panel Cutout Height: 21.29mm
  • Panel Cutout Width: 33.93mm
  • Supply Voltage Min: 4.5V
  • Supply Voltage Max: 19.99V
  • Operating Temperature Min: -25°C
  • Operating Temperature Max: 60°C
  • Product Range: -
  • SVHC: No SVHC (07-Jul-2017)
  • Accuracy: ± 0.01V
  • Backlighting Colour: Red
  • Bezel Height: 22mm
  • Bezel Width: 35mm
  • Character Size: 14.2mm
  • Display Area Width: 35mm
  • Display Size: 46.5mm x 32.5mm
  • Display Technology: LED
  • External Depth: 25mm
  • External Length / Height: 20mm
  • External Width: 33mm
  • Humidity: 95%
  • LED Colour: Red
  • Leakage Current: 13mA
  • Operating Temperature Range: -25°C to +60°C
  • Resolution: 0.01V
  • Supply Voltage Range: 4.5V DC to 19.99V DC
