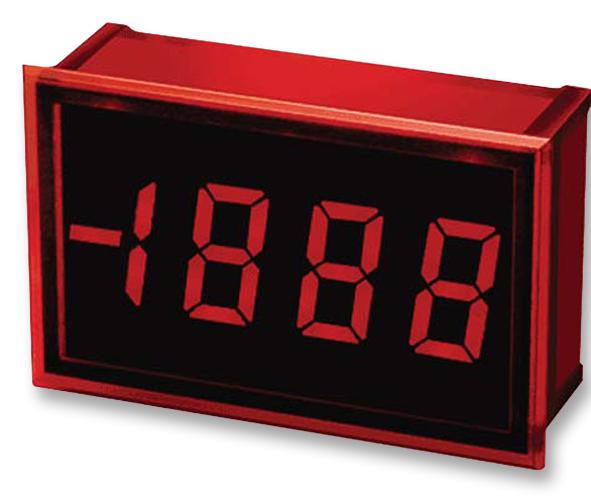

DMS-20Pc-1-RL-C DPM, LED, 3.5DIGIT, Red, Low Power Murata Power Solutions

MURATA POWER SOLUTIONS - DMS-20PC-1-RL-C - Digital Panel Meter, Self Powered, LED, 3-1/2 Digits, DC Voltage, -2V to +2V

• No. of Digits / Alpha: 3-1/2
• Meter Function: DC Voltage
• Meter Range: -2V to +2V
• Digit Height: 9.4mm
• Panel Cutout Height: 21.34mm
• Panel Cutout Width: 34.04mm
• Supply Voltage Min: 4.75V
• Supply Voltage Max: 5.25V
• Operating Temperature Min: 0°C
• Operating Temperature Max: 60°C
• Product Range: -
• SVHC: No SVHC (07-Jul-2017)
• External Depth: 12mm
• External Length / Height: 20mm
• External Width: 33mm
• Operating Temperature Range: 0°C to +60°C
• Supply Current: 7mA
• Supply Voltage Range: 4.75V to 5.25V
