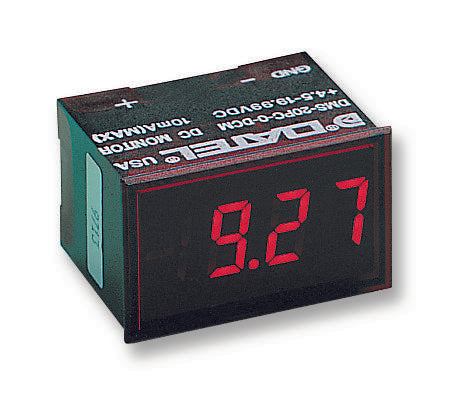

MURATA POWER SOLUTIONS - DMS-20PC-2-DCM-C - Digital Panel Meter, Self Powered, LED, 3-1/2 Digits, DC Voltage, 30V to 264V
- No. of Digits / Alpha: 3-1/2
- Meter Function: DC Voltage
- Meter Range: 30V to 264V
- Digit Height: 9.4mm
- Panel Cutout Height: 21.29mm
- Panel Cutout Width: 33.93mm
- Supply Voltage Min: 30VDC
- Supply Voltage Max: 264VDC
- Operating Temperature Min: -25°C
- Operating Temperature Max: 60°C
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Accuracy: ± 1V
- Backlighting Colour: Red
- Bezel Height: 22mm
- Bezel Width: 35mm
- Display Area Depth: 22mm
- Display Area Width: 35mm
- Display Size: 35.1mm x 20.4mm
- Display Technology: LED
- External Depth: 25mm
- External Length / Height: 20mm
- External Width: 33mm
- LED Colour: Red
- Leakage Current: 7mA
- Operating Temperature Range: -25°C to +60°C
- Panel Cutout Depth: 21mm
- Resolution: 1V
- Supply Voltage DC Max: 264V
- Supply Voltage DC Min: 30V
- Supply Voltage Range: 30V DC to 264V DC
