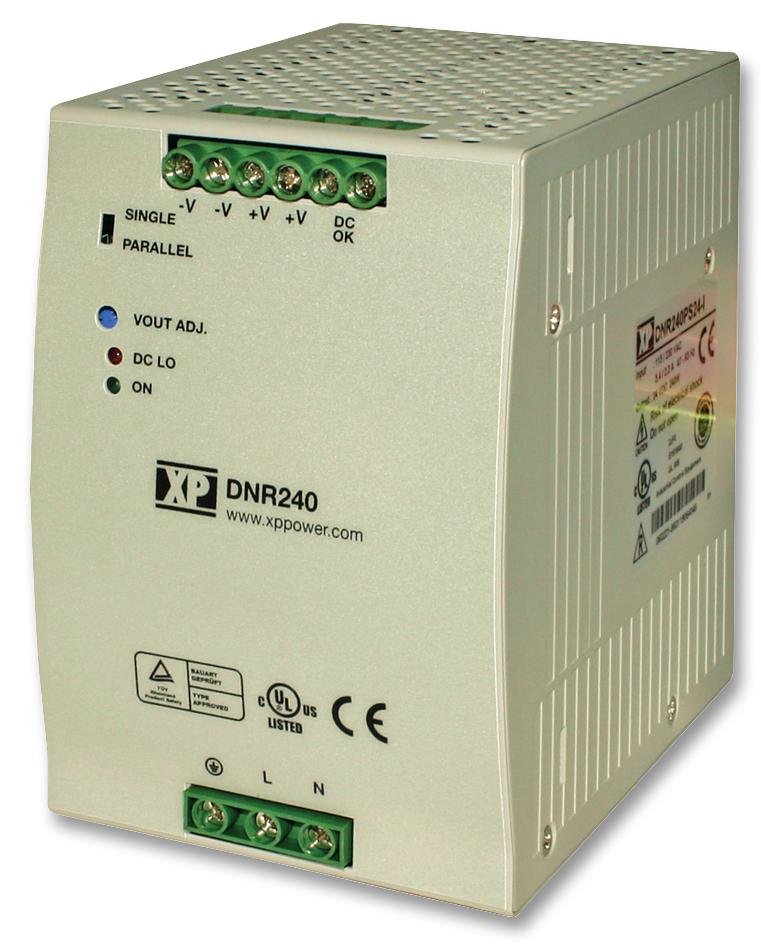

DNR240PS48-I PSU, DIN RAIL, 240W, 48V XP POWER

XP POWERUGS :DNR240PS48-I Code de commande:1209258

Prix:
Prix ​​promotionnel€176,25

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 3 produits disponibles

Documents et téléchargements

description

XP POWER - DNR240PS48-I - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 240 W, 48 VDC, 5 A

  • No. of Outputs: 1 Output
  • Output Power Max: 240W
  • Output Voltage - Output 1: 48VDC
  • Output Current - Output 1: 5A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: 90V AC to 264V AC
  • Power Supply Output Type: Fixed
  • Product Range: 5-960 DNR Series
  • SVHC: No SVHC (15-Jan-2018)
  • Applications: General Purpose
  • Approval Bodies: CE, EN, UL
  • Efficiency: 90%
  • External Depth: 116mm
  • External Length / Height: 142mm
  • External Width: 83mm
  • Height: 142mm
  • Input Frequency: 63Hz
  • Input Voltage AC Max: 264VAC
  • Input Voltage AC Min: 90VAC
  • Length: 116mm
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -10°C
  • Output Current: 5A
  • Output Voltage: 48V
  • Output Voltage Max: 56V
  • Output Voltage Min: 47V
  • Power Rating: 240W
  • Power Supply Type: DIN Rail
  • Supply Frequency Max: 63Hz
  • Supply Frequency Min: 47Hz
  • Supply Voltage: 264V
  • Weight: 1.36kg
