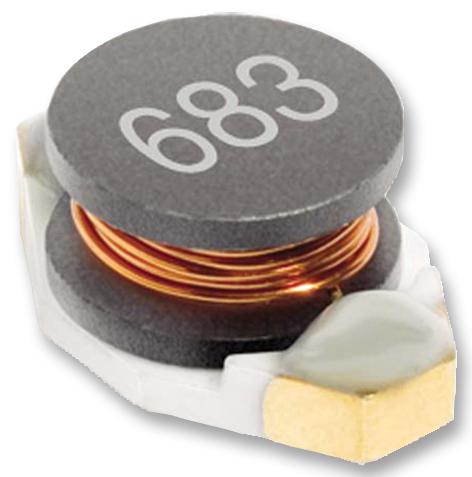

COILCRAFT - DO1608C-684MLC - Power Inductor (SMD), 680 µH, 190 mA, Unshielded, 140 mA, DO1608C, 6.6mm x 4.45mm x 2.92mm
- Inductance: 680µH
- RMS Current (Irms): 190mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 140mA
- Product Range: DO1608C Series
- Power Inductor Case: 6.6mm x 4.45mm x 2.92mm
- DC Resistance Max: 9.2ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Self Resonant Frequency Min: 3MHz
