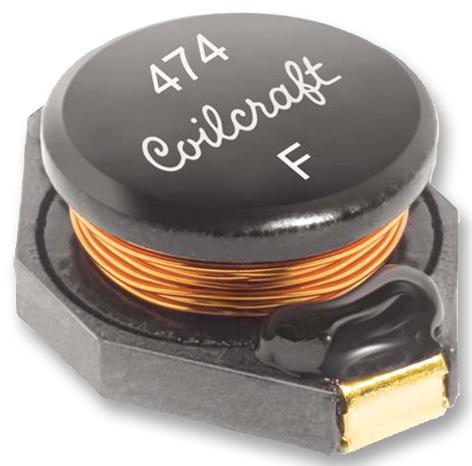

COILCRAFT - DO3316P-223MLD - Power Inductor (SMD), 22 µH, 2.7 A, Unshielded, 2.3 A, DO3316P
- Inductance: 22µH
- RMS Current (Irms): 2.7A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 2.3A
- Product Range: DO3316P Series
- Power Inductor Case: 12.95mm x 9.4mm x 5.21mm
- DC Resistance Max: 0.085ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Reel Quantity: 1000
- Self Resonant Frequency Min: 19MHz
