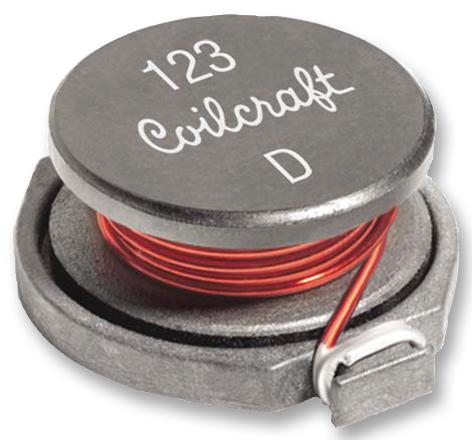

COILCRAFT - DO5010H-154MLD - Power Inductor (SMD), 150 µH, 1.5 A, Unshielded, 2.6 A, DO5010H
- Inductance: 150µH
- RMS Current (Irms): 1.5A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 2.6A
- Product Range: DO5010H Series
- Power Inductor Case: 18.03mm x 15.24mm x 7.11mm
- DC Resistance Max: 0.25ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 6MHz
