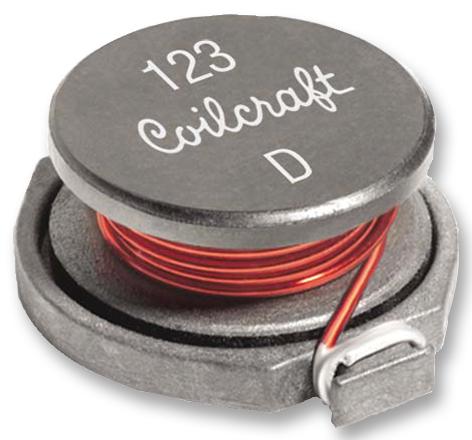

COILCRAFT - DO5010H-222MLD - Power Inductor (SMD), 2.2 µH, 12 A, Unshielded, 20 A, DO5010H, 18.03mm x 15.24mm x 8mm
- Inductance: 2.2µH
- RMS Current (Irms): 12A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 20A
- Product Range: DO5010H Series
- Power Inductor Case: 18.03mm x 15.24mm x 8mm
- DC Resistance Max: 0.0061ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 75MHz
