description

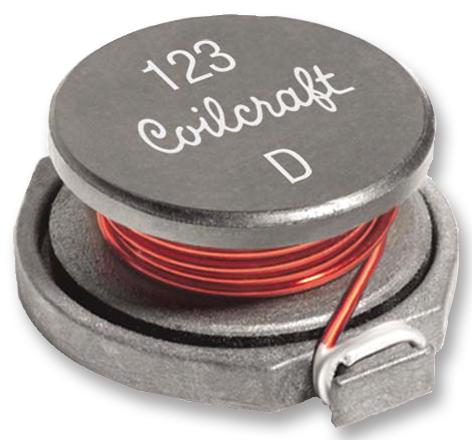

COILCRAFT - DO5010H-683MLD - Power Inductor (SMD), 68 µH, 2.3 A, Unshielded, 3.5 A, DO5010H, 18.03mm x 15.24mm x 7.62mm
- Inductance: 68µH
- RMS Current (Irms): 2.3A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 3.5A
- Product Range: DO5010H Series
- Power Inductor Case: 18.03mm x 15.24mm x 7.62mm
- DC Resistance Max: 0.13ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 8MHz
