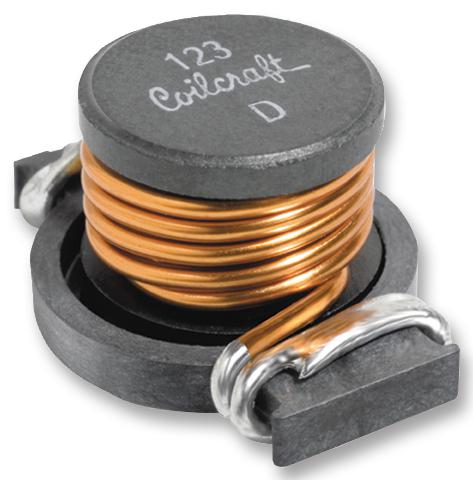

COILCRAFT - DO5040H-183MLD - Power Inductor (SMD), 18 µH, 6 A, Unshielded, 13.2 A, DO5040H
- Inductance: 18µH
- RMS Current (Irms): 6A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 13.2A
- Product Range: DO5040H Series
- Power Inductor Case: 18.54mm x 15.24mm x 12mm
- DC Resistance Max: 0.022ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 14MHz
