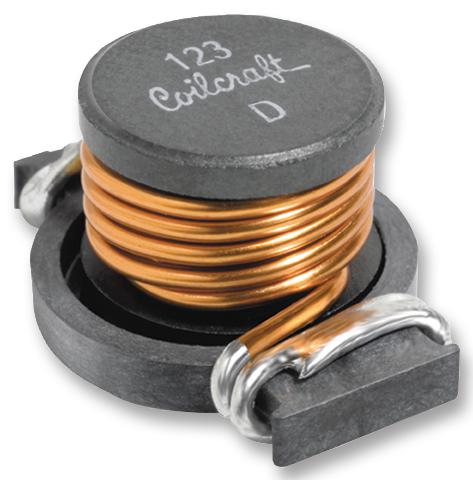

COILCRAFT - DO5040H-333MLD - Power Inductor (SMD), 33 µH, 4.5 A, Unshielded, 9.6 A, DO5040H
- Inductance: 33µH
- RMS Current (Irms): 4.5A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 9.6A
- Product Range: DO5040H Series
- Power Inductor Case: 18.54mm x 15.24mm x 12mm
- DC Resistance Max: 0.037ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Reel Quantity: 175
- Self Resonant Frequency Min: 10MHz
