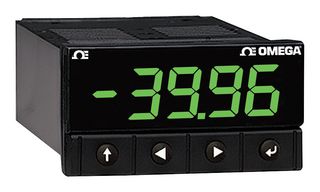

OMEGA - DP32PT - Process Controller, Platinum Series, 1/32 DIN, 90 to 240 Vac, No Outputs, USB
- No. of Digits / Alpha: 4
- Meter Function: Multifunction
- Meter Range: ± 50mV, ± 100mV, ± 1V, ± 10V, 0mA to 24mA, 4mA to 20mA
- Digit Height: 10.2mm
- Panel Cutout Height: 22.5mm
- Panel Cutout Width: 45mm
- Supply Voltage Min: 90VAC
- Supply Voltage Max: 240VAC
- Operating Temperature Min: 0°C
- Operating Temperature Max: 50°C
- Product Range: Platinum DP32PT Series
- SVHC: No SVHC (27-Jun-2018)
