IXYS SEMICONDUCTOR - DPG120C300QB - Fast / Ultrafast Diode, High Performance, 300 V, 60 A, Dual Common Cathode, 1.4 V, 35 ns, 550 A
- Repetitive Reverse Voltage Vrrm Max: 300V
- Forward Current If(AV): 60A
- Diode Configuration: Dual Common Cathode
- Forward Voltage VF Max: 1.4V
- Reverse Recovery Time trr Max: 35ns
- Forward Surge Current Ifsm Max: 550A
- Operating Temperature Max: 175°C

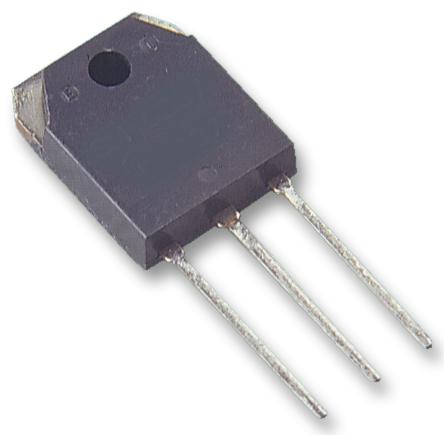

- Diode Case Style: TO-3P
- No. of Pins: 3 Pin
- Product Range: DPG12 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Case Temperature Tc @ If: 125°C
- Current If @ Vf: 60A
- Current Ifsm: 550A
- Diode Type: Fast Recovery
- Forward Voltage: 1.1V
- Junction Temperature Tj Max: 150°C
- Junction to Case Thermal Resistance A: 0.55°C/W
- No. of Pins: 3Pins
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Pin Configuration: Common Cathode
- Reverse Recovery Time trr Typ: 35ns
- Termination Type: Through Hole
- Time on for IFSM: 10ms
