description
MAXIM INTEGRATED / ANALOG DEVICES - DS1801S+ - Volatile Digital Potentiometer, 45 kohm, Dual, 3 Wire, Serial, Logarithmic, ± 20%, 2.7 V
- End To End Resistance: 45kohm
- No. of Pots: Dual
- Control Interface: 3 Wire, Serial
- Track Taper: Logarithmic
- Resistance Tolerance: ± 20%
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V

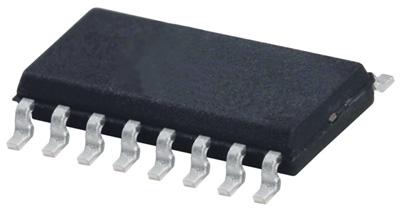

- Potentiometer IC Case Style: SOIC
- No. of Pins: 16Pins
- No. of Steps: 65
- Temperature Coefficient: ± 750ppm/°C
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: Dual 64-Tap Volatile Digital Pots
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 1801
- No. Steps: 65
- No. of Channels: 2Channels
- No. of Positions: 64Ways
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage: 5V
- Supply Voltage Range: 2.7V to 5.5V
- Track Resistance: 50kohm
