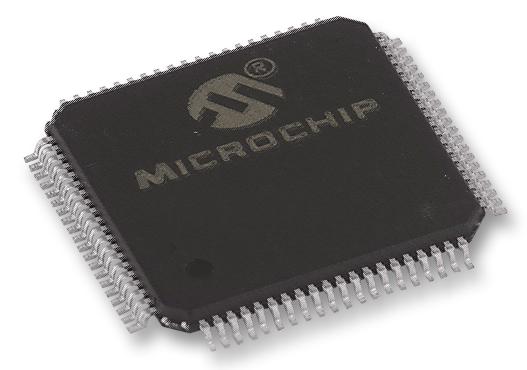

MICROCHIP - DSPIC30F6014-20I/PF - Digital Signal Controller, dsPIC30F, 40 MHz, 144 KB, 68 I/O's, CAN, I2C, SPI, UART, 5.5 V
- Product Range: dsPIC30F Series
- Core Frequency: 40MHz
- Flash Memory Size: 144KB
- No. of I/O's: 68I/O's
- Embedded Interface Type: CAN, I2C, SPI, UART
- Core Supply Voltage: 5.5V
- DSC Case Style: TQFP
- No. of Pins: 80Pins
- Supply Voltage Min: 2.5V
- Supply Voltage Max: 5.5V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 30
- Core Frequency Typ: 20MHz
- DSP Type: Fixed / Floating Point
- IC Generic Number: 30F6014-20
- IC Temperature Range: Industrial
- Lead Spacing: 0.65mm
- Logic Function Number: 30F6014
- Operating Temperature Range: -40°C to +85°C
- RAM Memory Size: 8192Byte
- Row Pitch: 16mm
- Supply Voltage Range: 2.5V to 5.5V
- Termination Type: Surface Mount Device
- Voltage Vcc: 5V
