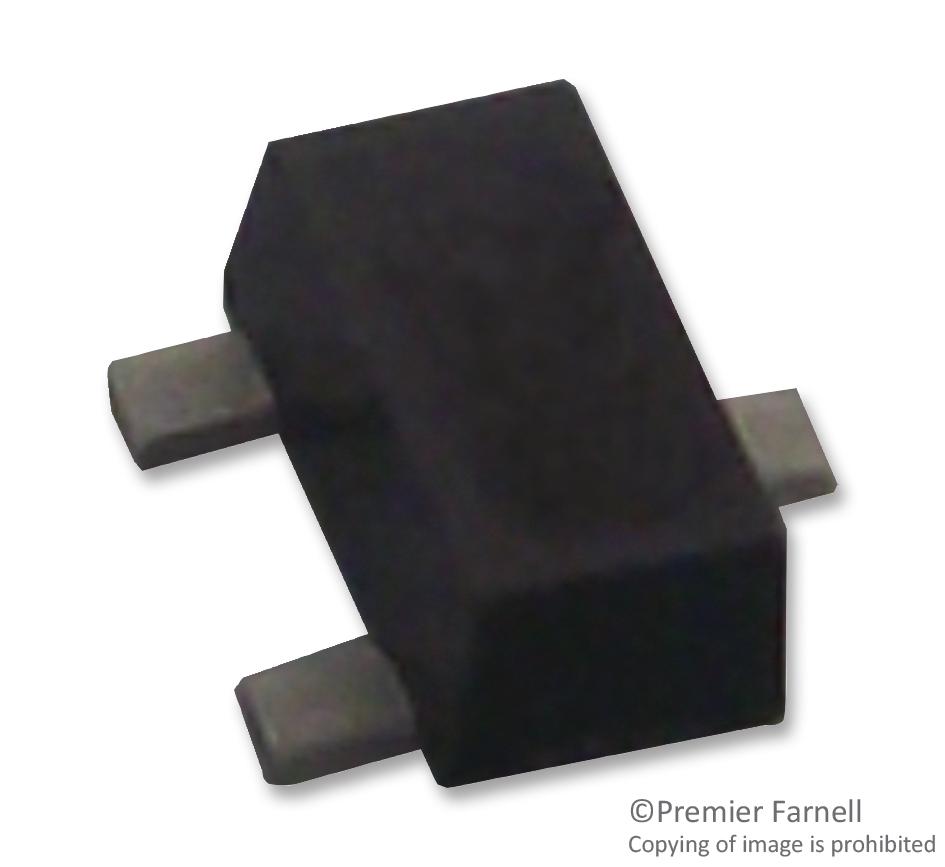

DTA143ZUAT106 Transistor ROHM

ROHMUGS :DTA143ZUAT106 Code de commande:1680211

Prix:
Prix ​​promotionnel€0,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2975 unité)

Documents et téléchargements

description

ROHM - DTA143ZUAT106 - Bipolar Pre-Biased / Digital Transistor, Single PNP, 50 V, -100 mA, 4.7 kohm, 47 kohm

  • Digital Transistor Polarity: Single PNP
  • Collector Emitter Voltage V(br)ceo: 50V
  • Continuous Collector Current Ic: -100mA
  • Base Input Resistor R1: 4.7kohm
  • Base-Emitter Resistor R2: 47kohm
  • Resistor Ratio, R1 / R2: -
  • RF Transistor Case: SOT-323
  • No. of Pins: 3 Pin
  • Product Range: DTA143Z Series
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2018)
  • Current Ic Continuous a Max: 100mA
  • DC Collector Current: 100mA
  • DC Current Gain hFE: 80hFE
  • Gain Bandwidth ft Typ: 250MHz
  • Hfe Min: 80
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Power Dissipation Pd: 200mW
  • Termination Type: Surface Mount Device
  • Transistor Case Style: SOT-323
  • Transistor Polarity: PNP
  • Transistor Type: General Purpose
  • Transition Frequency ft: 250MHz
