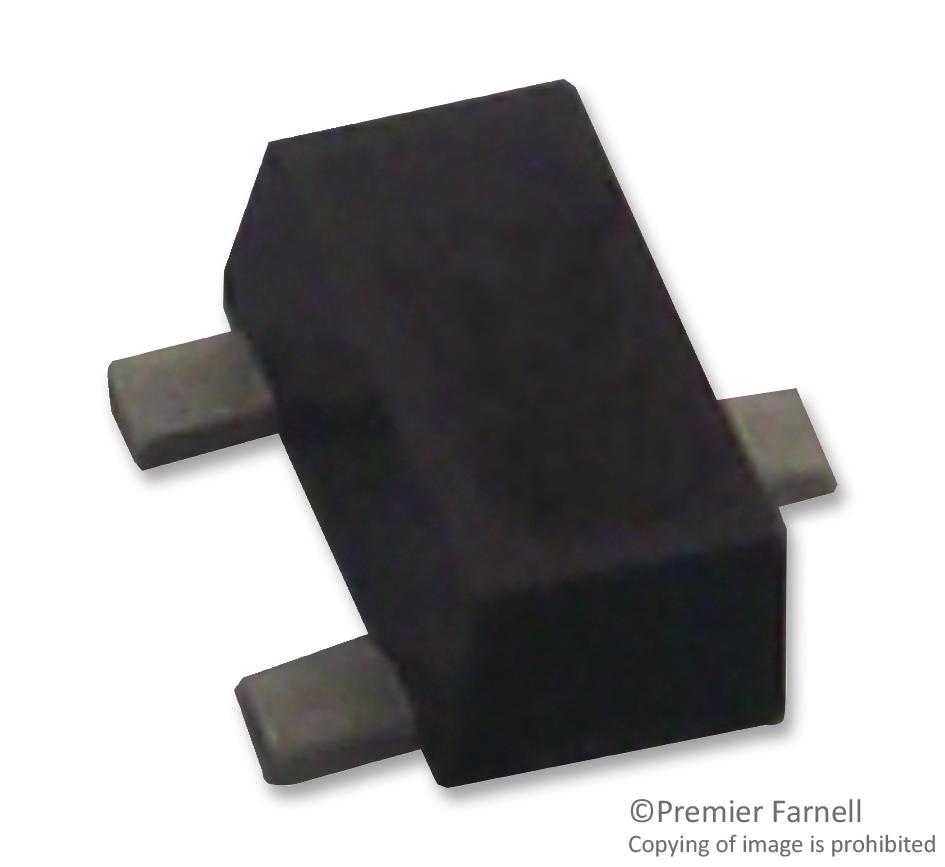

ROHM - DTB114EKT146 - Bipolar Pre-Biased / Digital Transistor, Single PNP, -50 V, -500 mA, 10 kohm, 10 kohm
- Digital Transistor Polarity: Single PNP
- Collector Emitter Voltage V(br)ceo: -50V
- Continuous Collector Current Ic: -500mA
- Base Input Resistor R1: 10kohm
- Base-Emitter Resistor R2: 10kohm
- Resistor Ratio, R1 / R2: -
- RF Transistor Case: SOT-346
- No. of Pins: 3 Pin
- Product Range: DTB114E Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Current Ic Continuous a Max: 500mA
- DC Collector Current: 500mA
- DC Current Gain hFE: 56hFE
- Gain Bandwidth ft Typ: 200MHz
- Hfe Min: 56
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Pd: 200mW
- Termination Type: Surface Mount Device
- Transistor Case Style: SOT-346
- Transistor Polarity: PNP
- Transistor Type: General Purpose
- Transition Frequency ft: 200MHz
