description

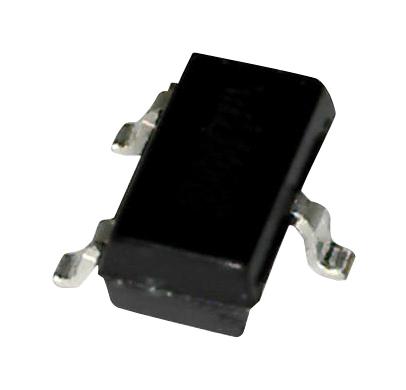

ROHM - DTC144EETL - Bipolar Pre-Biased / Digital Transistor, Single NPN, 50 V, 100 mA, 47 kohm, 47 kohm
- Digital Transistor Polarity: Single NPN
- Collector Emitter Voltage V(br)ceo: 50V
- Continuous Collector Current Ic: 100mA
- Base Input Resistor R1: 47kohm
- Base-Emitter Resistor R2: 47kohm
- Resistor Ratio, R1 / R2: -
- RF Transistor Case: EMT
- No. of Pins: 3 Pin
- Product Range: DTC144E Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Application Code: TL
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- DC Collector Current: 100mA
- DC Current Gain hFE: 68hFE
- Gain Bandwidth ft Typ: 250MHz
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Power Dissipation Pd: 150mW
- Power Dissipation Ptot Max: 150W
- Termination Type: Surface Mount Device
- Transistor Case Style: EMT
- Transistor Polarity: NPN
- Transistor Type: Bias Resistor (BRT)
- Transition Frequency ft: 250MHz
