LITTELFUSE - DUR6060W - Fast / Ultrafast Diode, 600 V, 60 A, Single, 2 V, 50 ns, 600 A
- Repetitive Reverse Voltage Vrrm Max: 600V
- Forward Current If(AV): 60A
- Diode Configuration: Single
- Forward Voltage VF Max: 2V
- Reverse Recovery Time trr Max: 50ns
- Forward Surge Current Ifsm Max: 600A
- Operating Temperature Max: 150°C

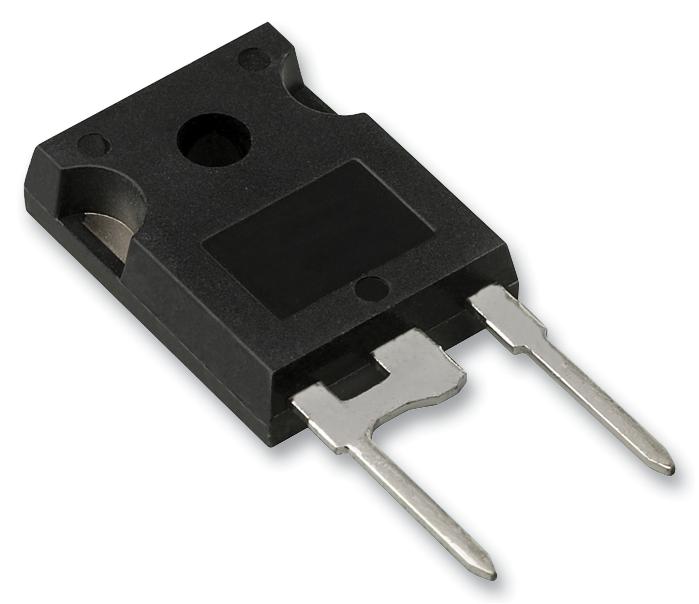

- Diode Case Style: TO-247AC
- No. of Pins: 2 Pin
- Product Range: DUR Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
