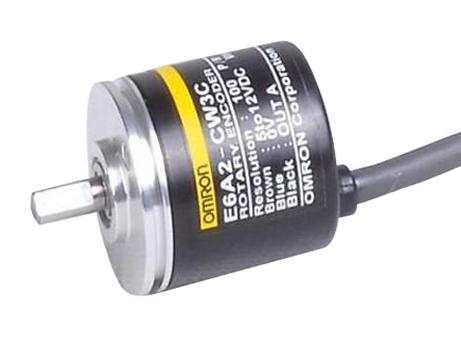

E6A2CW3C-200 Encoder, Rotary Omron

OMRONUGS :E6A2CW3C-200 Code de commande:1603030

Prix:
Prix ​​promotionnel€389,97

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documents et téléchargements

description

OMRON - E6A2CW3C-200 - Rotary Encoder, Miniature, 0.5m Cable, Optical, Incremental, 200 PPR, 0 Detents, Vertical

  • Supply Voltage Min: 5V
  • Supply Voltage Max: 12V
  • No. of Channels: 2Channels
  • Rotational Speed Max: 5000rpm
  • Product Range: E6A2 Series
  • Body Diameter: 25mm
  • Connector Type: Cable
  • Current Consumption: 20mA
  • Encoder Resolution: 200
  • External Length / Height: 31mm
  • Lead Length: 0.5m
  • No. of Pulses Per Revolution: 200
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -10°C
  • Operating Temperature Range: -10°C to +55°C
  • Pulse Output Count: 200
  • Rotational Speed: 5000rpm
  • Shaft Diameter: 4mm
  • Shaft Length: 8mm
  • Torque: 1mN-m
  • Type: Incremental Encoder
