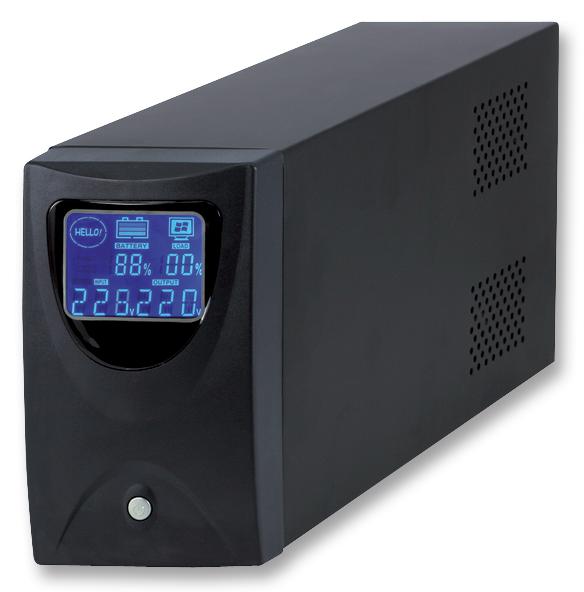

EA ELEKTRO-AUTOMATIK - EA-UPS INFORMER GUARD LCD2 600 AP - Uninterruptible Power Supply (UPS), Tower, ITE, 2 Outlets, 600VA / 360W, 300 V, 230 V, 2.5 min
- No. of Outlets: 2Outlets
- Capacity (VA / W): 600VA / 360W
- Input Voltage AC Max: 300V
- Output Voltage: 230V
- Backup Time - Full Load: 2.5min
- Product Range: -
- Length: 287mm
- Width: 100mm
- Height: 142mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN
- Battery Backup Time: 5min
- External Depth: 287mm
- External Length / Height: 142mm
- External Width: 100mm
- IP Rating: IP20
- Input Voltage: 175V AC to 300V AC
- Input Voltage AC Min: 175V
- No. of Outputs: 2Outputs
- Operating Temperature Max: 40°C
- Operating Temperature Min: 0°C
- Output Voltage Max: 230V
- Output Voltage Min: 207V
- Power Rating: 600W
- Power Supply Type: Uninterruptible
- Run Time @ Full Load: 2.5min
- Run Time @ Half Load: 5min
- Standard: EN 62040-1 / EN 62040-2
- Supply Voltage: 230V
- Supply Voltage Max: 300V
- Supply Voltage Min: 175V
- Supply Voltage Typ: 230V AC
- Supply Voltage V AC: 280V
- Switching Time: 6ms
- Weight: 4kg
- Weight Min: 4kg
