ECA2AAM470X Cap, 47µF, 100V, 20% Panasonic

PANASONICUGS :ECA2AAM470X Code de commande:8767653

Prix:
Prix ​​promotionnel€0,53

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1509 unité)

Documents et téléchargements

description

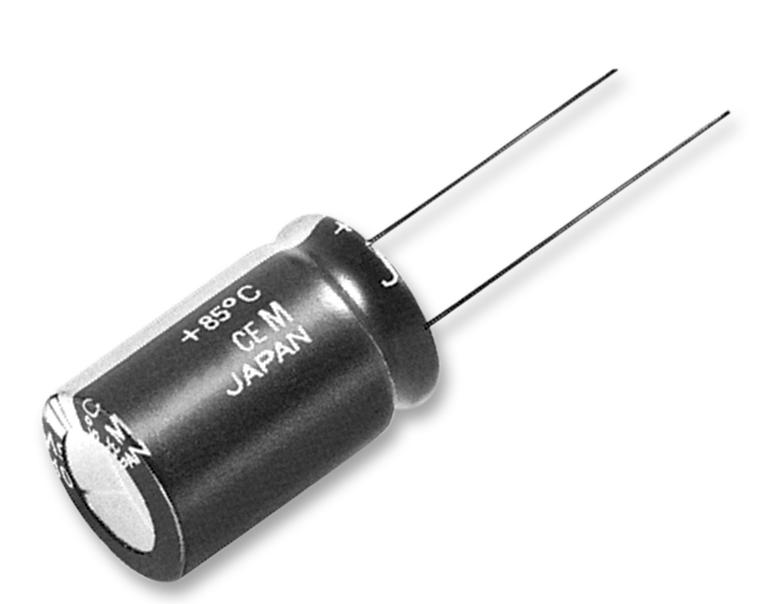

PANASONIC - ECA2AAM470X - Electrolytic Capacitor, 47 µF, 100 V, ± 20%, Radial Leaded, 2000 hours @ 85°C, Polar

  • Capacitance: 47µF
  • Voltage Rating: 100V
  • Product Range: AM Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 8mm
  • Lead Spacing: 3.5mm
  • Height: 11.5mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Lifetime @ Temperature: 2000 hours @ 85°C
  • ESR: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Application: Audio
  • External Length / Height: 11.5mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Operating life Time: 2000h
  • Ripple Current AC: 180mA
  • Tolerance -: 20%
  • Voltage Rating V DC: 100V
