ECEA1HN4R7U Cap, 4.7µF, 50V, 20% Panasonic

PANASONICUGS :ECEA1HN4R7U Code de commande:9696628

Prix:
Prix ​​promotionnel€0,60

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1642 unité)

Documenten en downloads

description

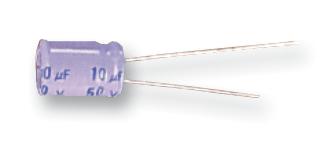

PANASONIC - ECEA1HN4R7U - Electrolytic Capacitor, 4.7 µF, 50 V, ± 20%, Radial Leaded, 2000 hours @ 85°C, Bi-Polar [Non-Polar]

  • Capacitance: 4.7µF
  • Voltage Rating: 50V
  • Product Range: SU(Bi-polar) Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 5mm
  • Lead Spacing: 2mm
  • Height: 11mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Lifetime @ Temperature: 2000 hours @ 85°C
  • ESR: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Application: Bipolar
  • External Length / Height: 11mm
  • Lead Diameter: 0.5mm
  • Leakage Current: 4.5µA
  • No. of Pins: 2Pins
  • Operating Life Temperature: 85°C
  • Operating Temperature Range: -40°C to +85°C
  • Operating life Time: 2000h
  • Power Factor: 0.15
  • Ripple Current AC: 30mA
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating V DC: 50V
