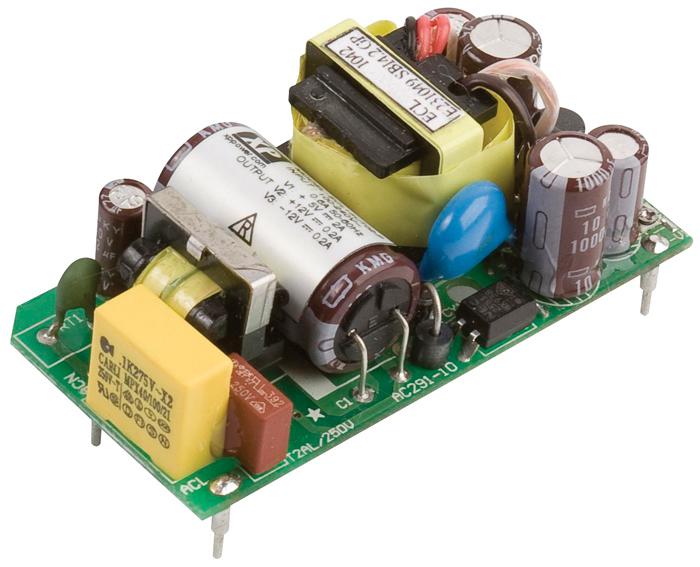

XP POWER - ECL15US09-P - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 15 W, 9 V, 1.67 A
- No. of Outputs: 1 Output
- Output Power Max: 15W
- Output Voltage - Output 1: 9V
- Output Current - Output 1: 1.67A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Adjustable, Fixed
- Input Voltage VAC: 85V AC to 264V AC
- Width: 30.7mm
- Height: 24.4mm
- Depth: 62mm
- Product Range: ECL Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, cUL, EN, UL
- Efficiency: 80%
- External Depth: 63.5mm
- External Length / Height: 24.4mm
- External Width: 31.75mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Inrush Current Max: 20A @ 115VAC , 40A @230VAC
- Length: 63.5mm
- Line Regulation: 0.5%
- Load Regulation: 1%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Output Current Max: 1.67A
- Output Power: 15W
- Peak Output Current: 2.17A
- Power Rating: 15W
- Power Supply Type: Switch Mode
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
