ECM100US18 Power Supply, AC-DC, Medical, 18V, 5A XP Power

XP POWERUGS :ECM100US18 Code de commande:2099507

Prix:
Prix ​​promotionnel€147,54

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (31 unité)

Documents et téléchargements

description

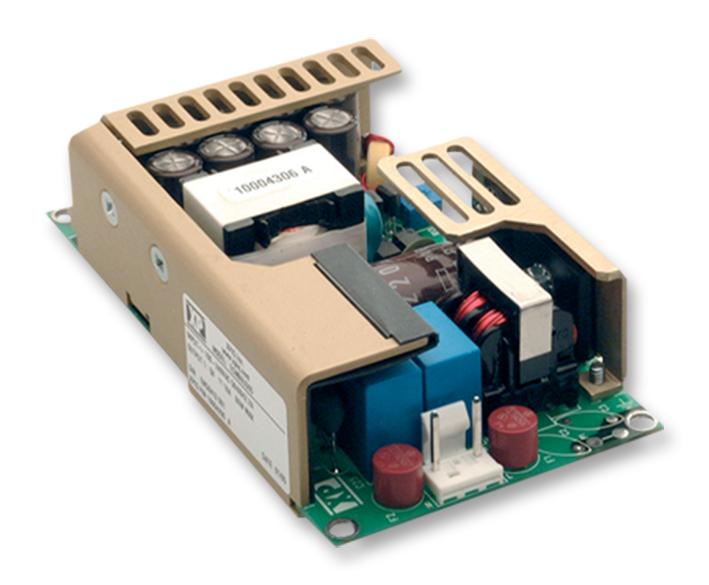

XP POWER - ECM100US18 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 100W @ 5CFM, 90 W

  • No. of Outputs: 1 Output
  • Power Rating (Covection Cooling): 90W
  • Power Rating (Forced Cooling): 100W @ 5CFM
  • Input Voltage VAC: 90V AC to 264V AC
  • Power Supply Output Type: Adjustable, Fixed
  • Output Voltage - Output 1: 18V
  • Output Current - Output 1: 5A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Product Range: ECM Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approvals / Standards: CSA 22.2 No. 60601, EN 60601, ES 60601
  • Height: 30.5mm
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 90V
  • Length: 63.5mm
  • No. of Outputs: 1Outputs
  • Output Current Max: 5A
  • Output Power Max: 90W
  • Power Rating: 100W
  • Width: 114.3mm
