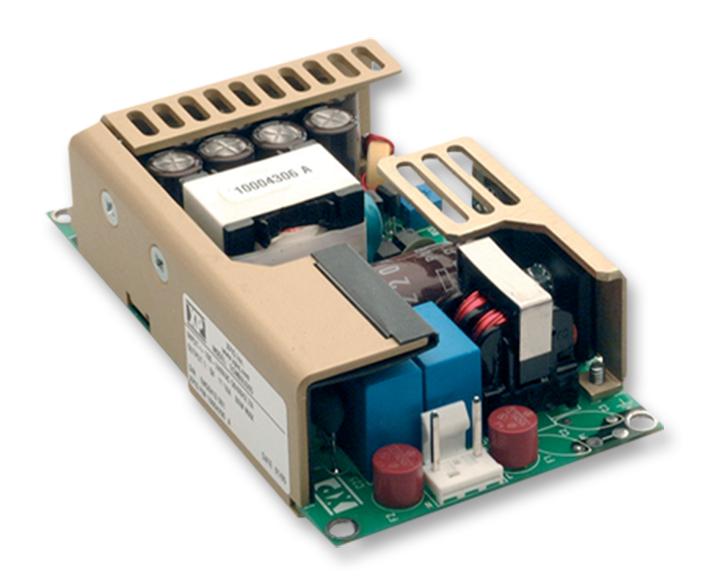

XP POWER - ECM100US33 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 100W @ 5CFM, 100 W
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 100W
- Power Rating (Forced Cooling): 100W @ 5CFM
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 33V
- Output Current - Output 1: 3A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECM Series
- SVHC: No SVHC (15-Jan-2018)
- Approvals / Standards: CSA 22.2 No. 60601, EN 60601, ES 60601
- Height: 30.5mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Length: 63.5mm
- No. of Outputs: 1Outputs
- Output Current Max: 3A
- Output Power Max: 99W
- Power Rating: 100W
- Width: 114.3mm
