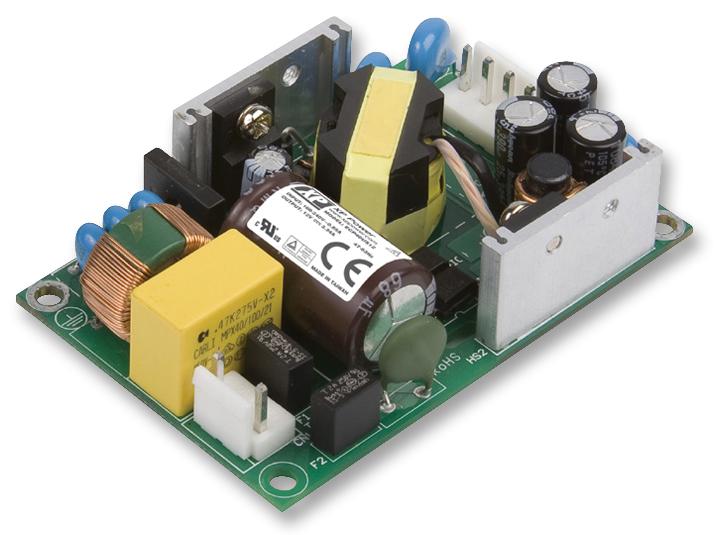

XP POWER - ECP40US05 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 30 W, 85V AC to 264V AC
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 30W
- Power Rating (Forced Cooling): -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 6A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECP40 Series
- SVHC: No SVHC (15-Jan-2018)
- Approvals / Standards: EN 60601, IEC 60601, UL 60601
- Efficiency: 82%
- Height: 23mm
- Input Voltage: 85V AC to 264V AC
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Length: 50.8mm
- No. of Outputs: 1Outputs
- Output Current Max: 6A
- Output Power Max: 30W
- Power Rating: 30W
- Power Supply Type: Switch Mode
- Supply Voltage Typ: 110V AC, 230V AC
- Width: 76.2mm
